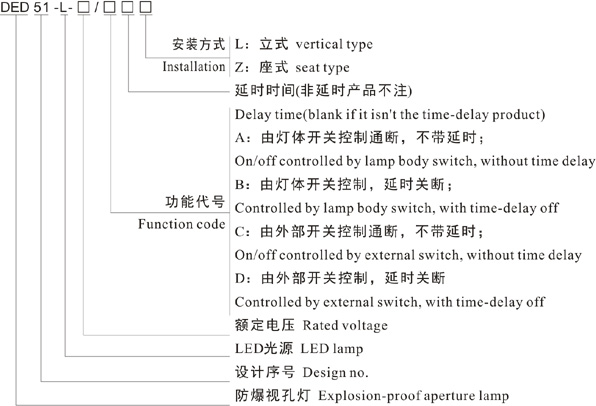

型號含義 Model implication
適用范圍 Applications
1. 適用于爆炸性氣體環境1區、2區；
2. 適用于IIA、IIB、IIC級爆炸性氣體環境；
3. 適用于溫度組別為T1～T6的環境；
4. 適用于石油采煉、儲存、化工、醫藥、軍工及軍事設施等爆炸性危險環境；
5. 主要用于化學反應容器照明；
6. 支架式安裝時可用作小范圍投光照明；
7. 采用高亮節能LED光源，低能耗、長壽命、免維護；
8. 充分考慮現場使用需求，特設磁控開關，具有延時關斷和觸控關斷兩種控制方式。
1. It is applicable for zone 1 and zone 2 in explosive gas atmosphere;
2. It is applicable for explosive gas atmosphere CAT. IIA, IIB and IIC;
3. It is applicable for temperature groups T1-T6.
4. It is applicable for dangerous explosive locations such as oil exploitation, petroleum refining and storage, chemical industry,medical industry, war industry, military installation, etc;
5. It is applicable for lighting of chemical reaction vessels;
6. It is applicable for small-scale projection lighting when it adopts rack mounting;
7. It adopts high-brightness energy-saving LED light source, with low power consumption, long service, and maintenance free;
8. Fully consider the field using demands, it is especially equipped with magnetic control switch that has time-delay turn off and touch-control turn off two modes.
產品特點 Features
1. 外殼采用鋁合金高壓鑄造成型，表面經拋丸后高壓靜電噴塑；
2. 防爆等級高，外形輕巧美觀；
3. 采用高亮度節能LED作為光源，綠色環保，具有低能耗、長壽命、免維護等優點；
4. 針對危險環境下的化學反應容器或特定地點。專門設計磁控開關；
5. 開關內置，用戶不需另配專用防爆照明開關；
6. 具有延時關斷和觸控關斷兩種控制方式，延時時間可根據用戶要求定制；
7. 根據不同的使用場所，此燈具還可作小范圍的投光照明，極具靈活性；
8. 內部電路設有短路保護功能；
9. 優良的密封結構設計，防水防塵性能好；
10. 鋼管或電纜布線。
1.The shell is made of aluminum alloy by means of high-pressure casting, and the surface is treated with high-pressure static powder coating after shot blasting.
2.High explosive-proof grade, elegant appearance;
3.Adoption of high-brightness LED as the light source, it is featured with environmental friendly, low power consumption, long service life, maintenance free, etc;
4.It is applicable for chemical reaction vessels or special locations in dangerous environment, with special magnetic control switch;
5.Built-in switch, need not additional explosion-proof lighting switch;
6.With time-delay turn off and touch-control turn off two modes,the delay time can be custom-made according to users' requirements;
7.It also can be used as small-scale projection lighting for some applications, with good flexibility;
8.The internal circuit is equipped with short-circuit protection function;
9.Excellent seal structure design, with good watertight and dustproof performances;
10.Steel pipe or cable wiring.

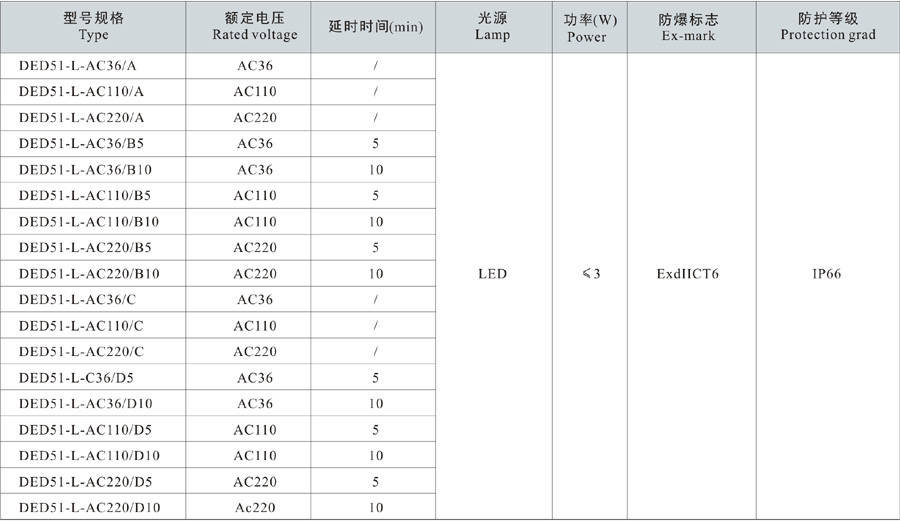

主要技術參數 Main technical parameters
執行標準：:GB 3836.1、GB 3836.2、IEC60079
防爆標志：:ExdIICT6
額定電壓：:AC 36/110/220V
光源：高亮度LED
額定功率：≤3W
延時關斷時間：5min、10min
防護等級：IP66
防腐等級：WF1
引入口規格：G1/2"
適用電纜外徑：Φ6mm～Φ10mm
Executive standard: GB 3836.1、GB 3836.2、IEC60079
Ex-mark：:ExdIICT6
Rated voltage：:AC 36/110/220V
Light source：LEDLight source
Rated power：≤3W
Time-delay turn off time：5min、10min
Protection grad：IP66
Corrosion-proof-class：WF1
Entry spec.：G1/2"
Cable's outer diameter：Φ6mm～Φ10mm
外形及安裝尺寸 Outlines ＆ installation dimensions
訂貨須知 Order note
1. 用戶需延時1-5min產品出廠整定為5min；需延時6-10min產品出廠整定為10min。如需延時10min以上產品訂貨時請注明。
2. 額定電壓如有特殊要求請注明。
例：若需訂購立式安裝的DED51-LED防爆視孔燈，額定電壓為AC110。由燈體開關控制延時5min關斷，則訂貨型號為DED51-LED-AC110/B5L。
1. Factory default for products with time delay 1-5min is set as 5min; for products with time delay 6-10min is set as 10min. Please specify clearly if require the time delay more than 10min.
2. Please specify clearly for special requirements on rated voltage. e.g: if need a vertically installed DED51-LED explosion-proof inspection hole lamp, rated voltage is AC110, with lamp body switch control, turn off after a delay of 5min, then the order model should be DED51-LED-AC110/B5L.
